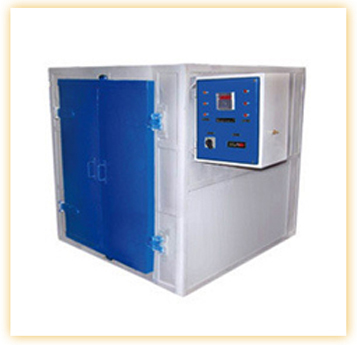

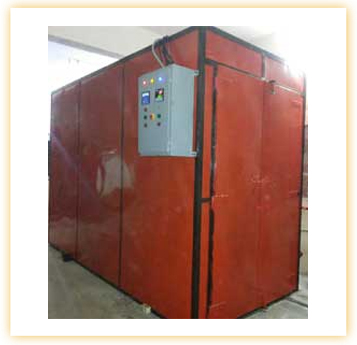

This Industrial Oven is specially designed as per guideline of GMP supplied with IQ, OQ & PQ Document with calibration report for PID Controller.
TECHNICAL SPECIFICATIONS :
» Triple walled construction
» Inner made of S.S.316 mirror polished
» Outer made of S.S.304 Dull finish
» Gap between the two walled filled with high grade glass wool insulation of 65 mm
» Heating element is made of S.S. ‘U’ type tubular ni chrome wire with S.S. Sheathing
» Heaters are placed at the right & left side of the inner chamber.
» PID controller with auto tuning facility with double display to view set & current temp
» Temp. range 50 C to 250 C
» Silicon rubber gasket fitted on door to prevent lost of heat.
» Control switch & pilot lamp are fitted on front panel supplied with S.S. Rod Type Jali
INDUSTRIAL OVEN IS AVAILABLE IN BELOW SIZES :
| Inner Dimension (W X D X H) | No.of Shelves | Capacity In LTR | Rating Watts |
| 12"x12"x12" | 1 | 27 | 1250 |
| 14"x14"x14" | 2 | 42 | 1450 |
| 18"x18"x18" | 3 | 90 | 1750 |
| 18"x18"x24" | 4 | 120 | 2000 |
| 24"x24X"24" | 4 | 215 | 2500 |
| 24"x24"x36" | 5 | 320 | 3500 |
OPTIONAL ACCESSORIES :
» Digital timer to cut off the heater at set intervals PID controller with printer interface to record set valves & actual valves data 7 Timer.
» Single 4 point/8 point data logger
» Air circulation for uniform Temp. Throughout chamber
