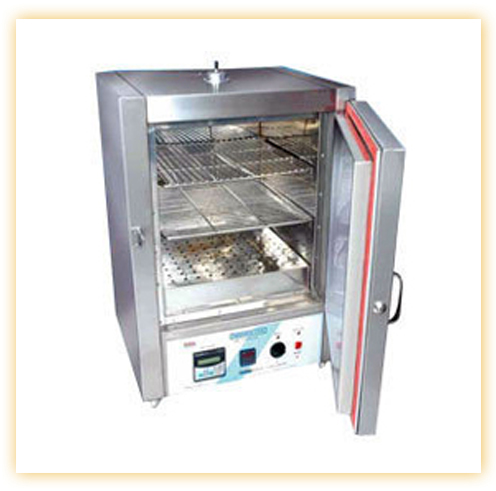

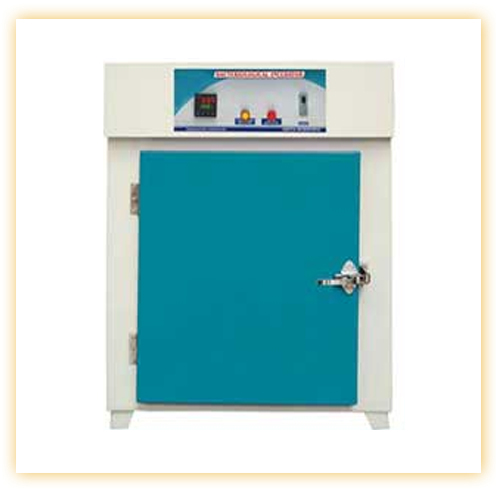

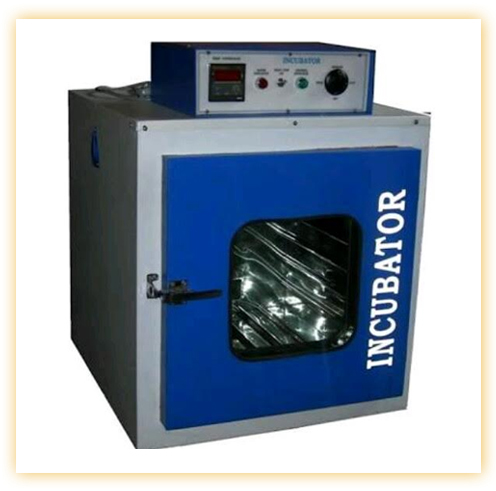

This Bacteriological Incubator are made as per guideline of GMP supplied with IQ OQ & PQ document with calibration report for PID controller.
FEATURES :
» Triple walled construction
» Inner made of S.S.316 mirror polished
» Outer made of S.S.304 Dull finish
» Gap between the two walled filled with glass wool insulation of 65 mm
» Heating Element is made of S. S. ‘U’ type tubular nichrome wire with S.S. Sheathing
» Heaters are placed at the right & left side of the inner chamber
» PID Controller with auto tuning facility with double display to view set & current temp
» Temp. Range 5 C above ambient to 60 C with accuracy of ± 0.5 C.
» Silicon rubber gasket fitted on door to prevent lost of heat
» Control Switch & pilot lamp are fitted on front panel supplied with S.S. Rod Type Jali
BACTERIOLOGICAL INCUBATOR GMP MODEL IS AVAILABLE IN BELOW SIZES :
| Inner Size Size in Inches (W X D X H) | No.of Shelves | Capacity In LTR | Rating Watts |
| 12"x12"x12" | 1 | 27 | 250 |
| 14"x14"x14" | 2 | 42 | 300 |
| 18"x18"x18" | 3 | 90 | 400 |
| 18"x18"x24" | 4 | 120 | 700 |
| 24"x24X"24" | 4 | 215 | 1000 |
| 24"x24"x36" | 5 | 320 | 1500 |
OPTIONAL ACCESSORIES :
» Digital Timer to cut off the heater at set interval
» PID Controller with Printer interface to record
» Set Valves & actual valves data & Time
» 80 Column DOT MATRIX Printers
» Safety controller with alarm for Temp. Overshoot
» Single 4 point/8 point data logger
